CVI-Spec Spectral Acquisition and Analysis Software
Acquire and Analyze Spectra Easily
Color Analysis
Thin Film Thickness Measurement
Process Data and Monitor Over Time
Wide Variety of Manipulation Procedures
Overlay Multiple Spectra
FFT (low pass filter) smoothing routine
Data saved as ASCII text for easy export |
|

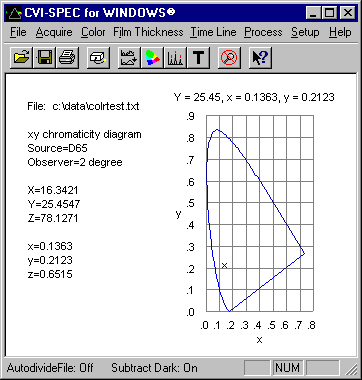

CIE 1931 Color Analysis Report
|
Features
Transmission, reflectance, and absorbance measurements Film thickness measurements Calculates XYZ, Yxy, L*a*b*, Hunter, L*C*h*, DL*a*b*, DL*C*h*,
CIE 2º and 10º standard observers. Time sequence provides procedures for continuous
monitoring and display of
(a.) full spectra,
(b.) amplitude values,
(c.) color,
(d.) film thickness,
(e.) integration over spectral bands, and
(f.) ratios of points or of integrated bands. View multiple traces on a single graph. Has rubber-band zoom and auto-peak find. Control signal averages and integration time. Features intuitive menu system and tool bars. 16 and 32-bit Windows™.
|
System and Software Requirements
IBM compatible computer with a 386 processor or higher (486 or higher is recommended) Microsoft Windows™ version 3.1 or higher Four MB of RAM (8 MB for Windows 3.1™ or 16 MB for Windows 95™ is recommended) A hard disk with at least 2 MB free space
A 3½" high density floppy drive (1.44 MB) An EGA, VGA, 8415, Hercules, or compatible display
|

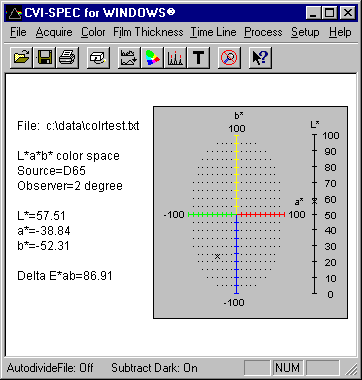

L*a*b* Color Analysis Report
|
|
